H05BZ5-F EV Cable

Application:Electrical Equipment;Conductor Material:High Purity Copper/Tinned Copper;Insulation Material:XLPE/XLPO;Shielding:Braided tinned copper/Aluminum foil;Characteristic:Resistant to cold/UV/water/oil;Jacket:TPU/TPE;Rated Voltage:300V/600V/1500V


Description

Products Description


Supporting both the motor industry and the wider, growing electric vehicle (EV) market, BRS Cables' range of automotive cables and power cables deliver high performance across a range of applications.

EV Charging Cable

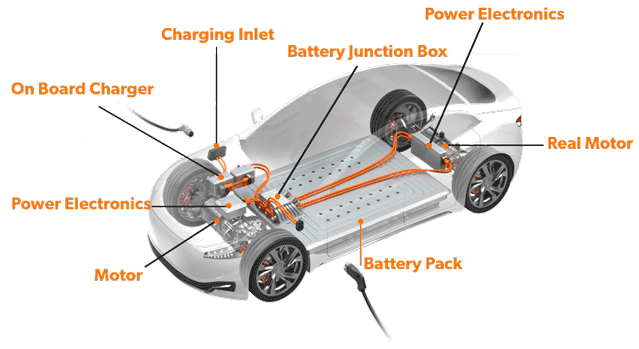

Like much of the car industry now, our automotive cable range is predominantly focused on EV cable requirements. It includes automotive cables for the vehicle itself, whether electric or traditional petrol & diesel, such as standard wall FL auto and reduced wall FLR auto cables for low-tension electrical wiring in starting, charging, lighting, signalling and instrument panel circuits, FLRYY cables for trucks (ADR approved), and FHL2G and FHLR2GCB2G cables for powertrain units, as well as cables specific to the standards of Fiat, BMW and other major manufacturers. We also support American standard automotive wires, measured in AWG sizes.

The rapidly growing EV market is reliant upon a network of cables to support charging: cables required to support EV charging and the fast expanding EV Charging Point installation business. Domestic and commercial would look to the EV Charge Connect, and H05BZ5-F & H07BZ5-F cables for vehicle connections for Mode 1,2,3 charging, and Mode 4 DC Charging cables for industrial installation, as well as needing cables for the wider grid power connections.

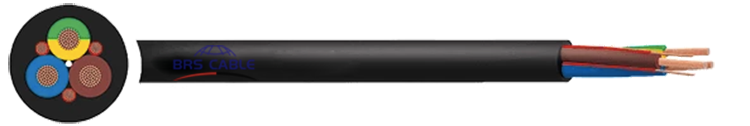

H05BZ5-F & H07BZ5-F cables
APPLICATION
Robust flexible multicore PUR sheathed cable compatible with European standard electric vehicle AC charging modes 1 (single phase - domestic), 2 and 3 (single/three phase - commercial/public) installations. Suitable for trailing EV plug connections to vehicle.

CHARACTERISTICS
Voltage Rating U/Uo:H05BZ5-F 300/500V,H07BZ5-F - 450/750VTemperature Rating :Operating: -40°C to +90°C ,Minimum installation and use temperature: -40°C ,Maximum temperature of short circuit: +250°C
STANDARDSEN 50620, IEC 62893, EN/IEC 60228, IEC 60811-404, IEC 60332-1-2, IEC 60811-100, EN 62230, IEC 61851-1

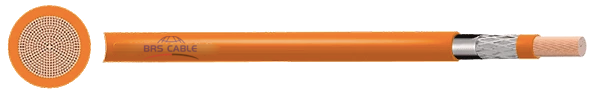

EV MODE 4 Charging Cable

APPLICATION

Class 6 flexible power cable with enhanced DC Power rating suitable for Mode 4 EV charging in public and commercial high powered electric vehicle charging stations. Suitable for installations with possibility of water immersion (AD7). G16 quality HEPR insulation with low corrosive gas emission and low fire propagation properties.

CHARACTERISTICSVoltage Rating:1500V DC,Test Voltage:3500V DC (2000V control/pilot cores)Temperature Range:-40ºC to +90ºCMaximum Short Circuit Temperature:+160ºCMinimum Bending Radius :5 x overall diameterMaximum Tensile Load:15 N/mm²

STANDARDSIEC 62893, EN 50620, ISO 61851, EN/IEC 60228, IEC 60332-1-2, IEC 60811-403/4, ISO 4892

Style of the cable (mm²)
Conductor Construction
n/mm
Stranded Dia.
mm Max
Conductor Max Resstance AT 20℃ (Ω/Km)
Nominal Thickness
（mm）
Insulation Dia.
(mm)
EV-YJ/SIR 1x1.5(Unshielded)
49/0.20AS
1.62
12.7
0.60
2.90±0.15
EV-YJ/SIR 1×2.5(Unshielded)
80/0.20AS
2.06
7.60
0.70
3.50+0.15
EV-YJ/SIR 1×4(Unshielded)
133/0.20AS
2.66
4.71
0.80
4.30±0.20
EV-YJ/SIR 1x6(Unshielded)
190/0.20AS
3.42
3.14
0.80
5.10±0.20
EV-YJ/SIR 1×10(Unshielded)
323/0.20AS
4.40
1.82
1.00
6.50±0.20
EV-YJ/SIR 1×16(Unshielded)
513/0.20AS
5.70
1.16
1.00
7.90±0.25
EV-YJ/SIR 1x25(Unshielded)
798/0.20AS
6.70
0.743
1.30
9.60±0.25
EVYJSIR 1×35(Unshielded)
1121/0.20AS
8.00
0.527
1.30
10.60±0.40
EV-YJSIR 1×50(Unshielded)
1596/0.20AS
9.50
0.368
1.50
12.50+0.40
EV-YJSIR 1x70(Unshielded)
2257/0.20AS
11.50
0.259
1.50
14.50±0.40
EV-YJ/SIR 1x95(Unshielded)
1887/0.254AS
13.50
0.196
1.60
16.90±0.50
EV-YJ/SIR 1x120(Unshielded)
2368/0.254AS
15.60
0.153
1.60
19.00±0.50

Our expertise in automotive cables lies in our ability to developing customized cable solutions that meet the requirements of the application. Our high-performance cable solutions are tested for quality and compliance in The Cable Lab.

For more information and to discuss your project with one of our EV industry experts, please get in touch.
